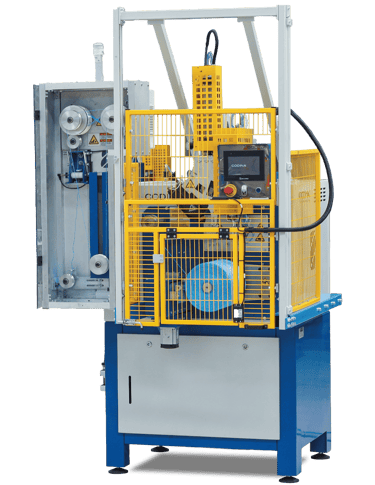

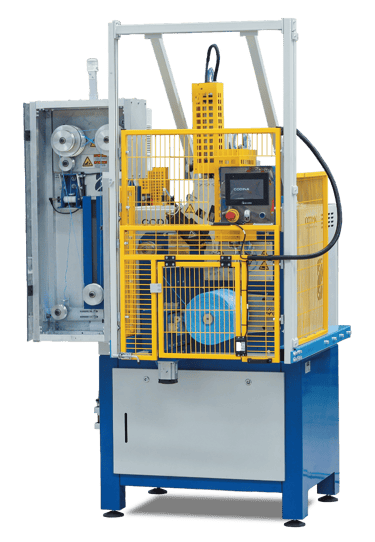

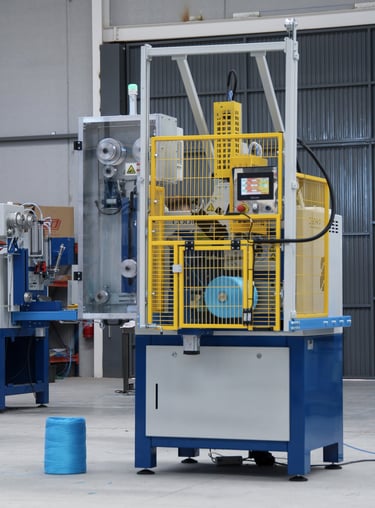

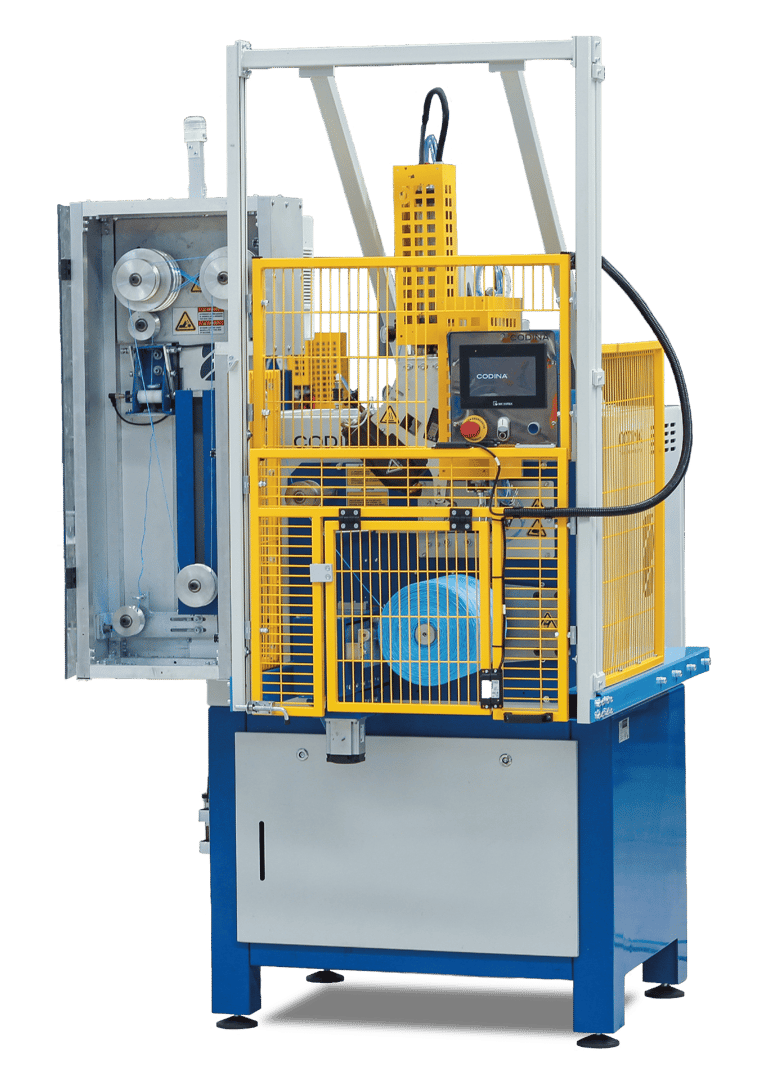

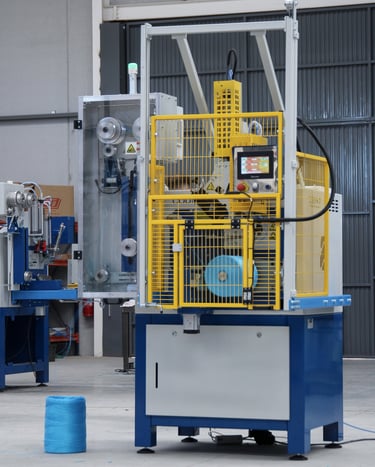

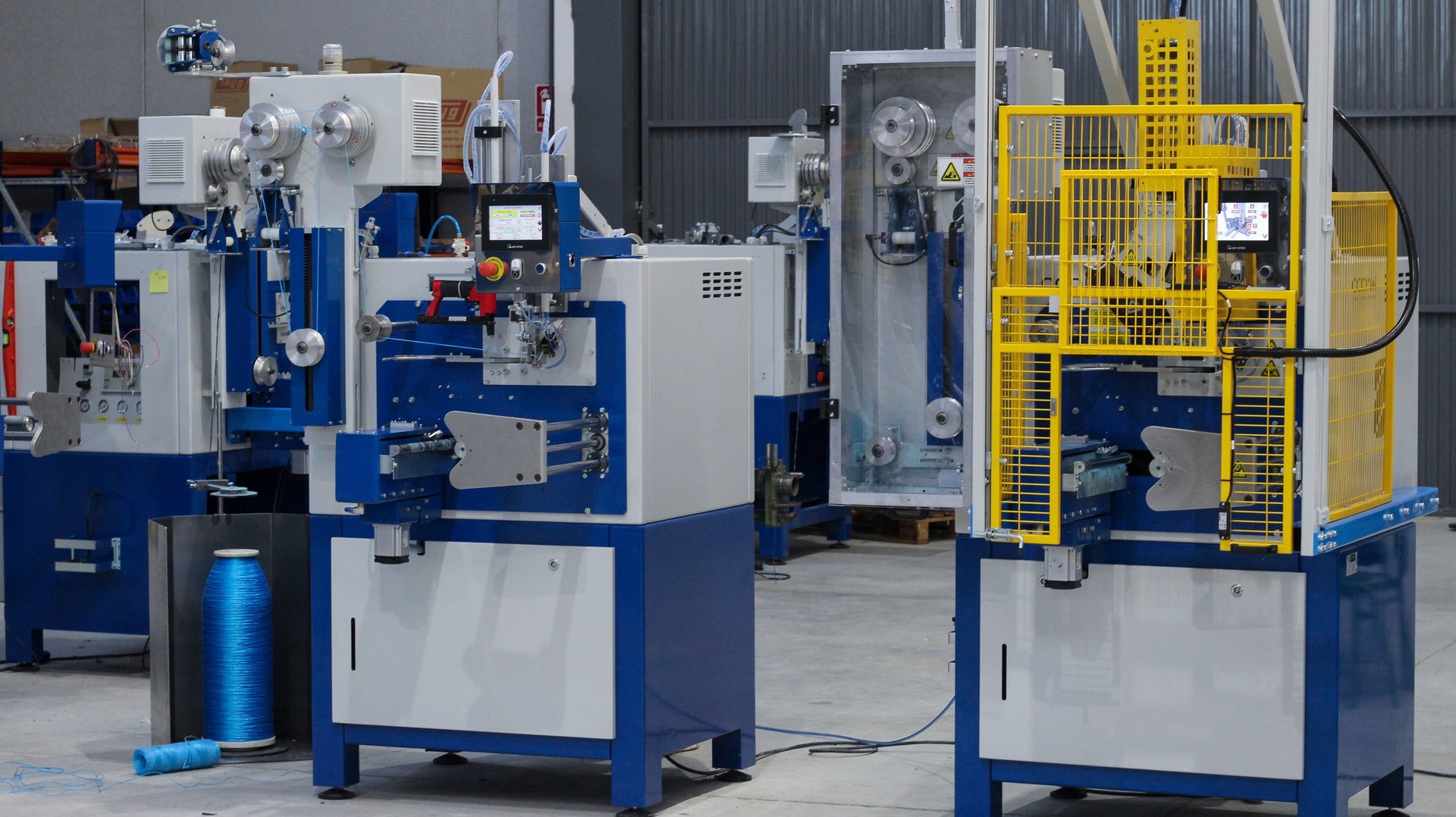

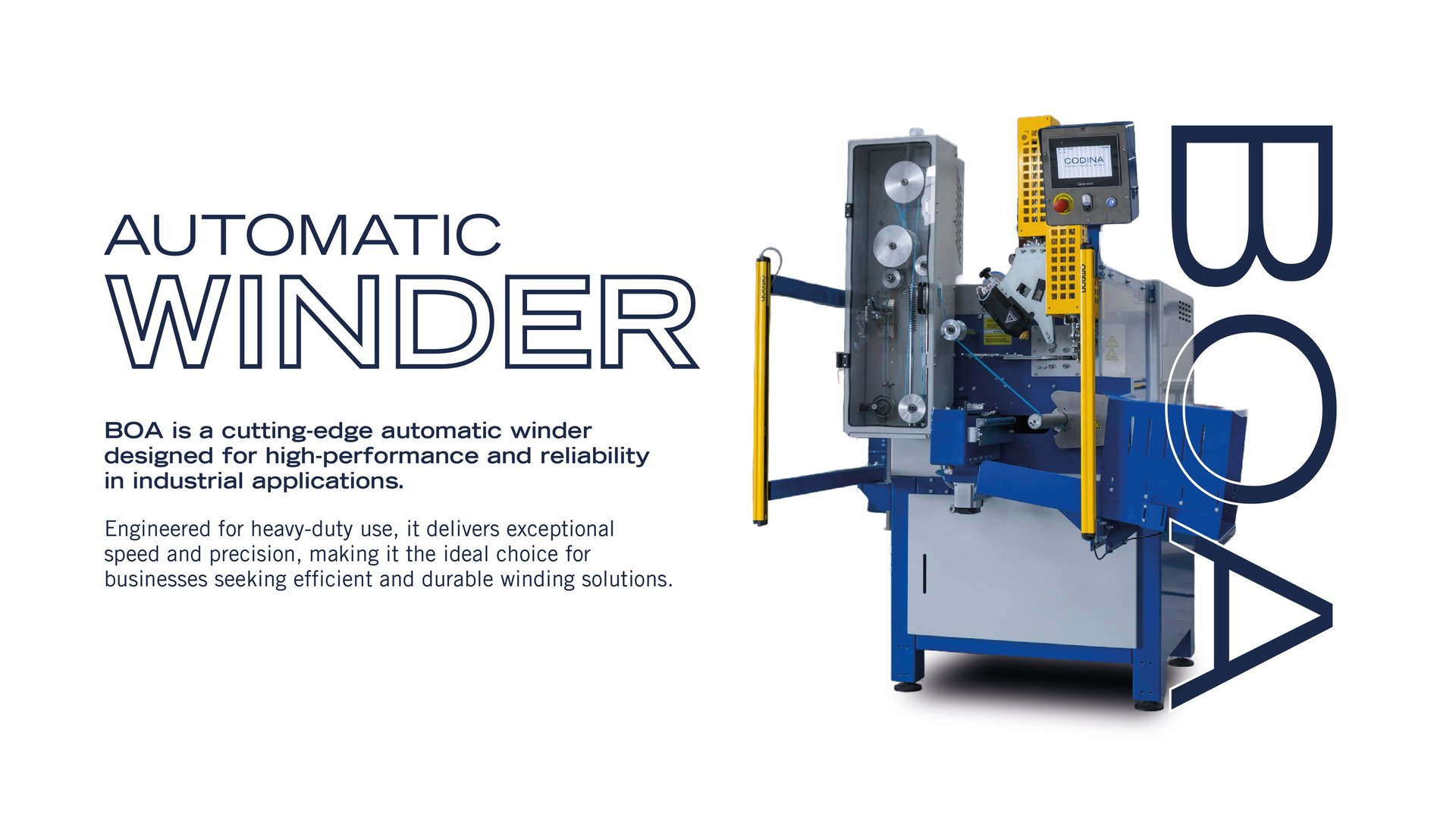

Watch BOA at its finest!

Where precision winds up perfectly

EXPLORE THE ULTIMATE WINDING SOLUTION.

EXPLORE THE ULTIMATE WINDING SOLUTION.

View more details!

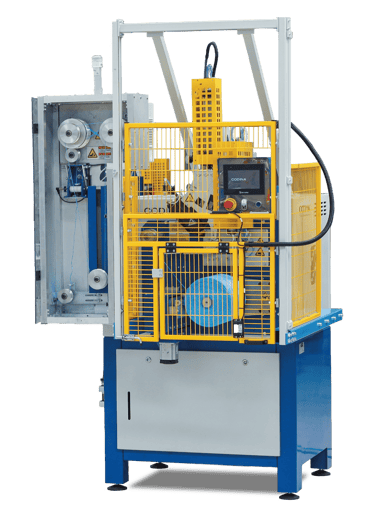

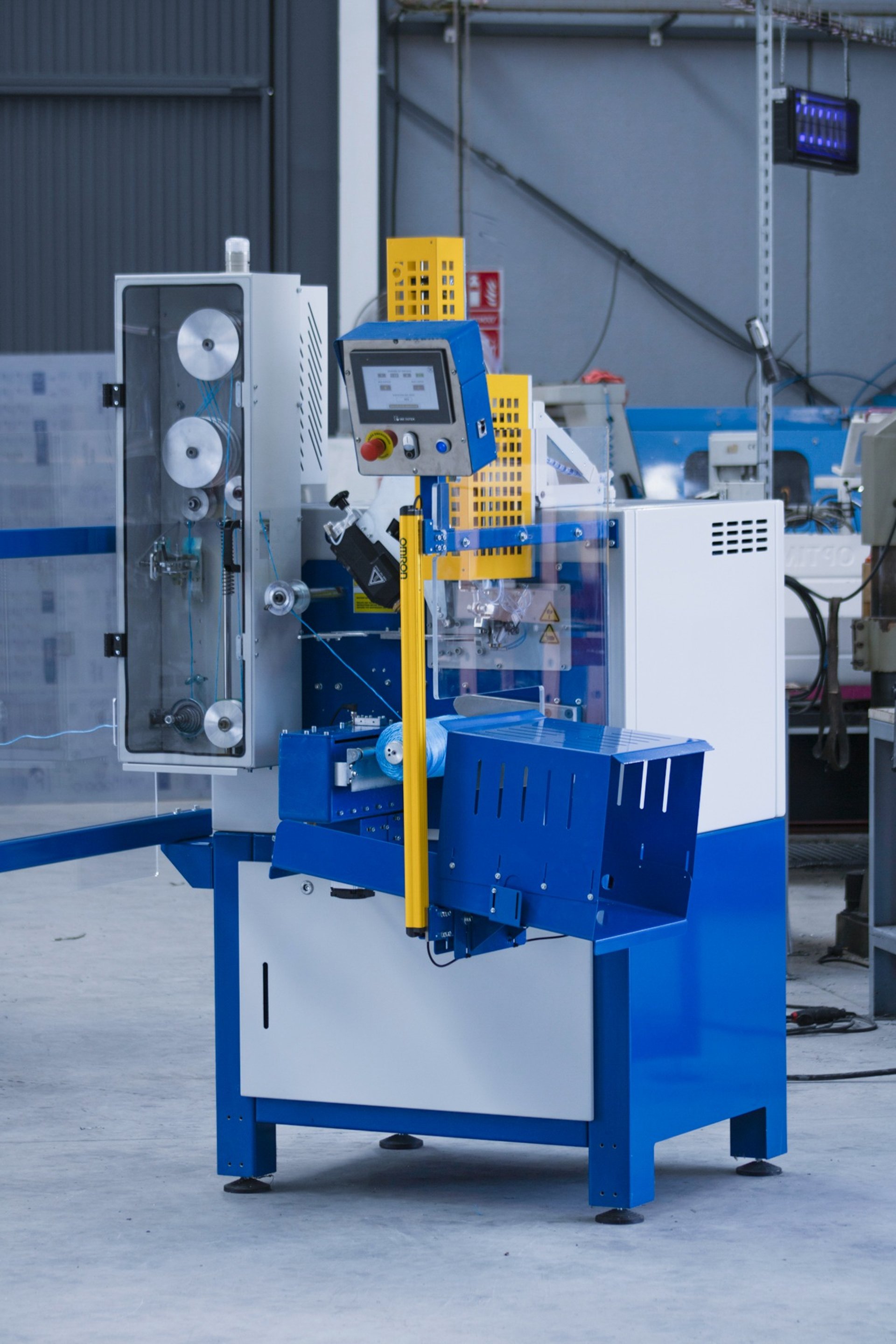

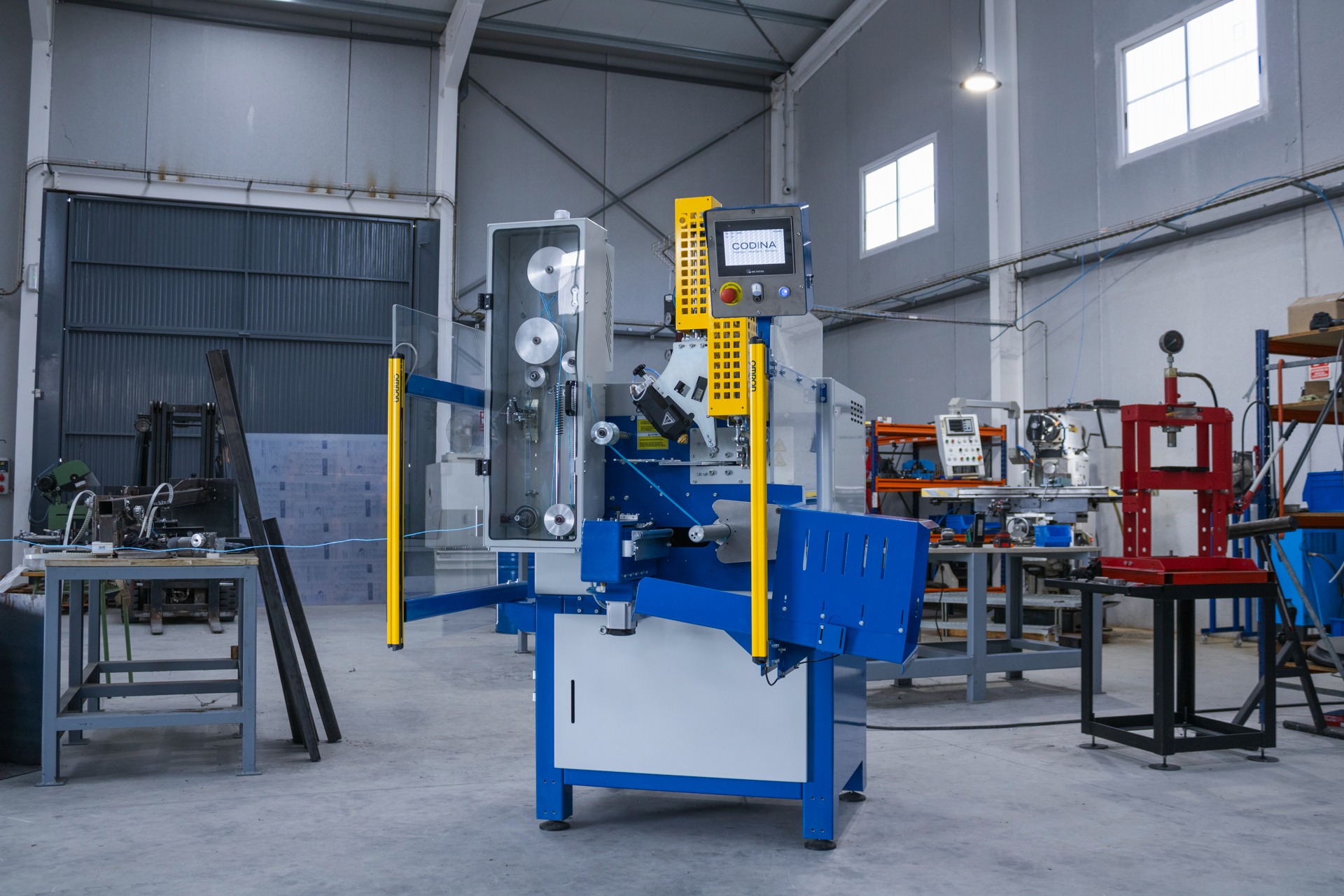

Main Points & Advantages

1. Bobbin Change in <10 seconds NEVER fails. Very short tail end.

2. Speeds example with 500 m/Kg Raffia: Bobbins of 5 Kg net weight in < 8 minutes, 1 Kg in < 2 min or 500 grams < 1 min.

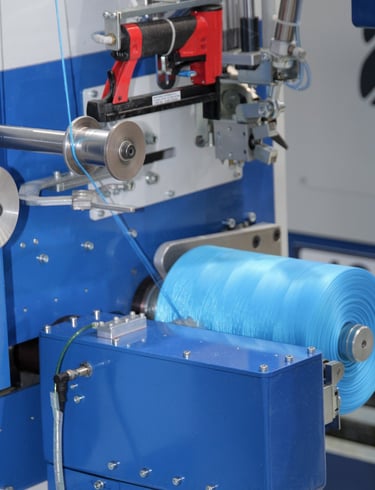

3. Yarn fixing with glue or clamp.

4. Very low noise (<40dB).

5. Pressurized traverse box auto lubricated, which dust never goes inside + Outside anti dust systems around the machine. ALWAYS CLEAN.

6. Average speed depending on yarn thickness & bobbin diameter from 400 to 600 meters/minute. Tangencial speed up to 1000 met/min.

7. Internet connection to manufacturer with password to update program versions and solve issues & SAP (ERP) compatibiliy.

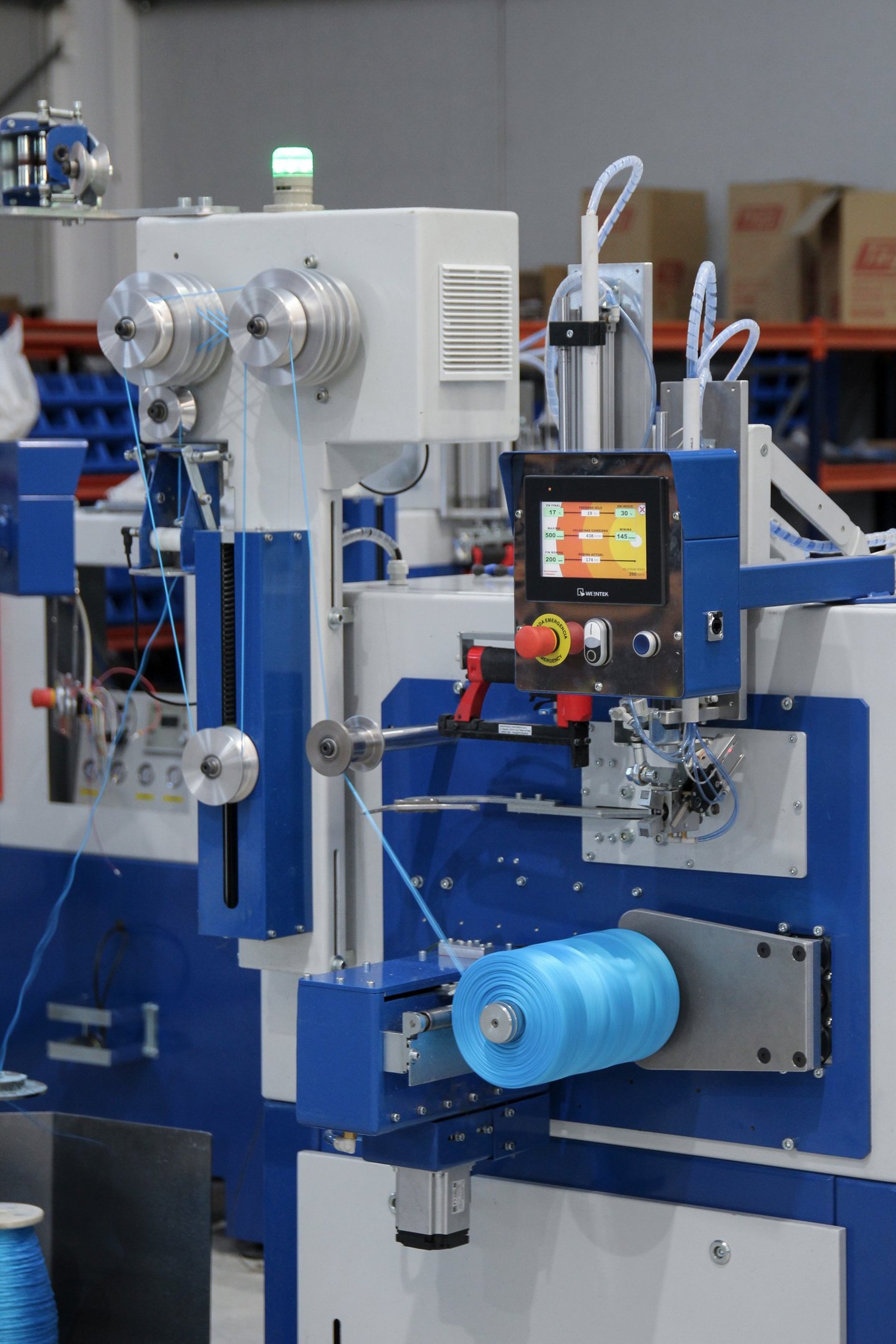

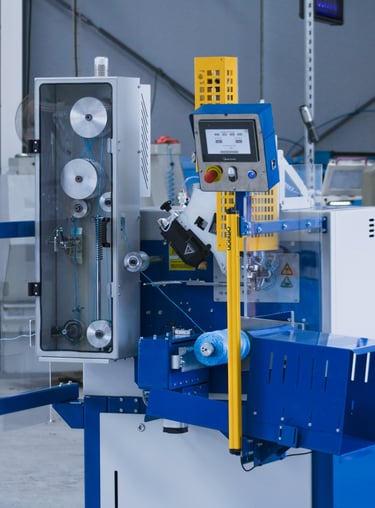

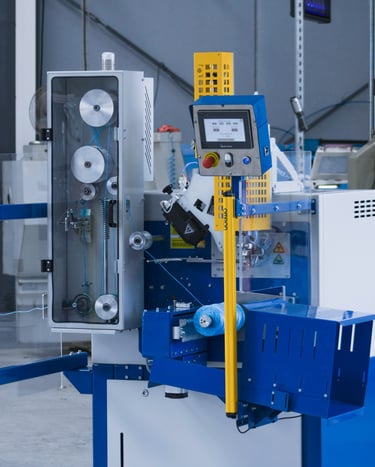

8. BIG TOUCH SCREEN DISPLAY to set up all parameters like:

• Number of bobbins to be made.

• Length per bobbin or diameter.

• Measurements in mm or yards.

• Tension curve(*).

• Traverse.

• Bobbin hardness (crossing box pressure against bobbin)

• Number of crossings(*)

• Speed (*), etc... (*)

• Up to 1.000 recipes to repeat ajustments.

Programable to be variable along bobbin formation for best bobbin possible (Hard & Perfect walls). Up to 1.000 recipes to repeat ajustments.

9. Low consumption from 0,20 to 0,82 kW/h depending on speed, yarn count & desired bobbin hardness.

10. Very sturdy steel structure in pallet size (1000 x 800 mm - 550 kg).

11. Monophase machine with voltage 220V 50/60Hz. Air pressure needed of 8 bars.

Options

• Standard version 6" to 12".

• Heavy version 10" to 20".

• Light Version: Pencil Winder from 1" to 6".

• Automatic Version with Tube System (From 50 to 500 tubes depending on size).

• Automatic Version without Tube THE MOST EFFICIENT BALER TWINE MACHINE.

• Automatic Version with Franged Bobbins & King Spools.

• Manual Version.

• Automatic Dust Vacum Cleaner.

• Dust boxes protections to extract dust manually time to time.

• Safety doors & Walls.

• Yarn fixing to chose between clamp or glue.

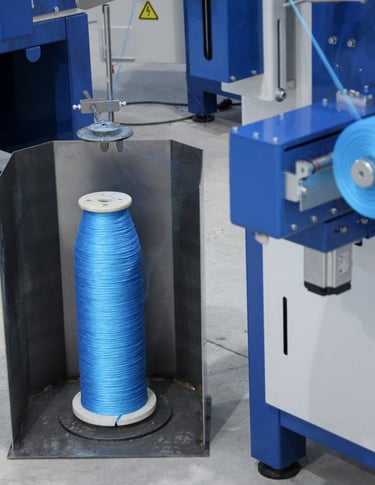

• Triangle plate to connect 3 bobbins from Ting Twister in an endless system.

  CODINA OFFER A RING TWISTING MACHINE 400 MM SIZE WITH 800 MM TRAVERSE FOR 25 NET WEIGHT BOBBIN OF RAFIA.

  With the above trinagle plate gives autonomy of 75 Kg to the winder.

HEAVY DUTY MACHINE. HIGH SPEED, BOBBINS LIKE STONES.

WANNA KNOW MORE?
CONTACT US FOR A TRIAL!
